# #define SHOW\_PASSWRDS

Met deze #define geef je aan of je wilt dat de **PSK Key** van je WiFi netwerk en het **wachtwoord** van de gebruikte MQTT Broker zichtbaar worden.

Via telnet het opvragen van de Board Info:

```
 B - Board Info
         .
         .
         .

==================================================================
               Board type [ESP8266_GENERIC]
                     SSID [A@nd@W@F@]
                  PSK key [**********]
               IP Address [192.168.1.108]
                 Hostname [DSMR-WS]
       Last reset reason: [Exception]
                   upTime [32(d):02:01]
==================================================================

```

en de Settings:

```
 S - list Settings
         .
         .
         .

==== MQTT settings ==============================================
          MQTT broker URL/IP : hassio.local
                   MQTT user : hassUser1
               MQTT password : *************
          MQTT send Interval : 120
              MQTT top Topic : DSMR-WS

```

| Define         | Functie                                                                                                                                                                                                                                                                                                                                    |
| -------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |

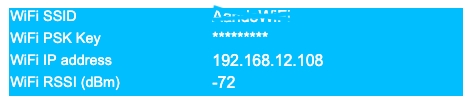

| SHOW\_PASSWRDS | <p>In de <strong>System Info</strong> tab wordt, als deze #define actief is de <strong>PSK Key</strong> van het WiFi netwerk getoont.<br>Bij de <strong>B - Board Info</strong> uitvoer wordt met deze deze #define de <strong>PSK Key</strong> zichtbaar en bij <strong>S - list Settings</strong> het wachtwoord van de MQTT Broker.</p> |

![](https://mrwheel.github.io/DSMRloggerWS/img/DSMR-logger-PSK_Key.png)


---
