# PUYA Flash Chip (ESP-01)

{% hint style="warning" %}
Let op! (alleen voor DSMR-logger Versie 2 of 3)\
**Pim van den Berg** heeft uitvoerig onderzoek gedaan naar de firmware op een DSMR-logger **Versie 3** bordje met de **ESP-01** en dit zijn de bevindingen:
{% endhint %}

| Firmware        | PUYA flash Chip | andere Flash Chip   |
| --------------- | --------------- | ------------------- |
| DSMRlogger2HTTP | Werkt           | Werkt               |
| DSMRloggerWS    | Werkt **NIET**  | Werkt (niet altijd) |

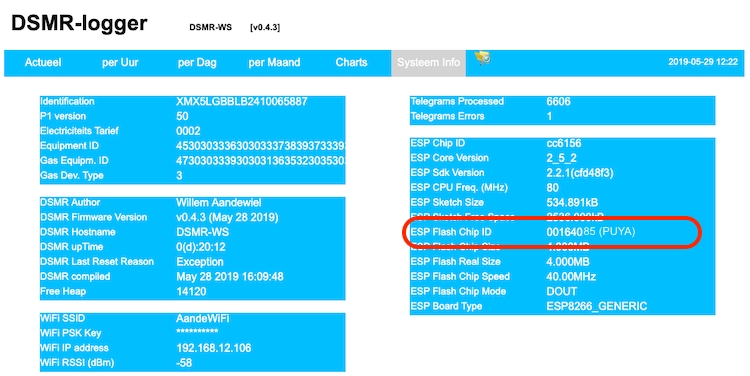

In het **Systeem Info** scherm (`DSMRloggerWS`) of het **Device Info** scherm (`DSMRlogger2HTTP`) kun je bij `Chip ID` zien of jouw ESP-01 een PUYA Flash chip heeft:

![](https://mrwheel.github.io/DSMRloggerWS/img/DSMR-logger_PUYAchip.png)

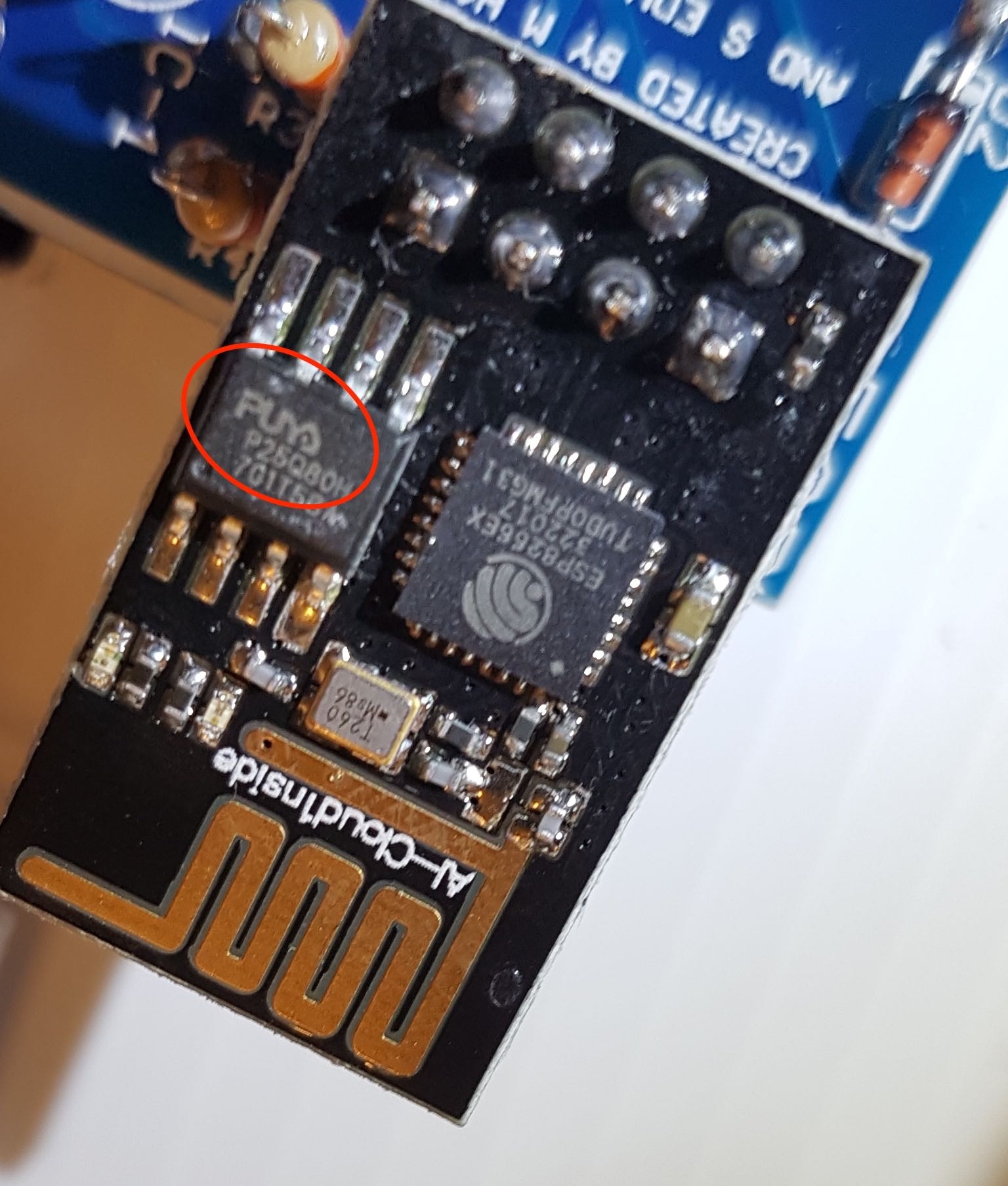

.. maar je kunt ook (met een vergrootglas) op de chip zélf kijken natuurlijk:

![](https://mrwheel.github.io/DSMRloggerWS/img/PUYAflashChip.jpg)


---
