# #define HAS\_OLED\_SH1106

### #define HAS\_OLED\_SH1106 <a href="#define-has_oled_sh1106" id="define-has_oled_sh1106"></a>

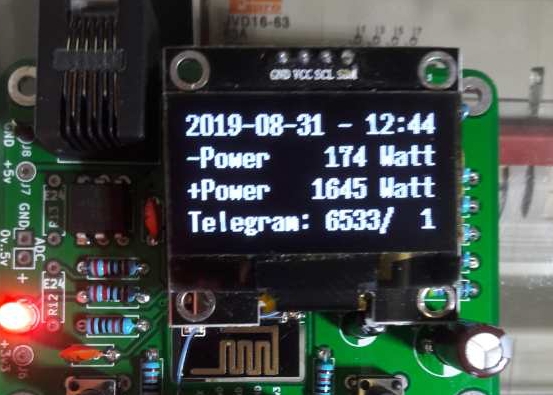

Als je een OLED schermpje op **J4** van de DSMR-logger V4 hebt aangesloten dan zorgt deze optie ervoor dat het OLED schermpje ook gebruikt wordt door de Firmware.

{% hint style="info" %}
Let op! \
Alleen voor DSMR-logger V4\
Met dank aan Dick Spork.
{% endhint %}

| #define           | Functie                                                                                                                                                                                  |
| ----------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| USE\_OLED\_SH1106 | <p>Deze define zorgt ervoor dat het 1.3" OLED schermpje gebruikt wordt om meldingen op te presenteren.<br>Deze define kan niet in combinatie met <strong>HAS\_OLED\_SSD1306</strong></p> |

![](https://mrwheel.github.io/DSMRloggerWS/img/SH1106_Display.png)


---
