Snap Joins

With snapJoins the Base and Lid “click” together without the need for screws or other aids.

  Default origin = yappCoordBox: box[0,0,0]

  Parameters:
   Required:
    p(0) = posx | posy
    p(1) = width
    p(2) = { yappLeft | yappRight | yappFront | yappBack } (one or more)
   Optional:
    n(a) = { <yappOrigin> | yappCenter }
    n(b) = { yappSymmetric }
    n(c) = { yappRectangle } : Make a diamond shape snap

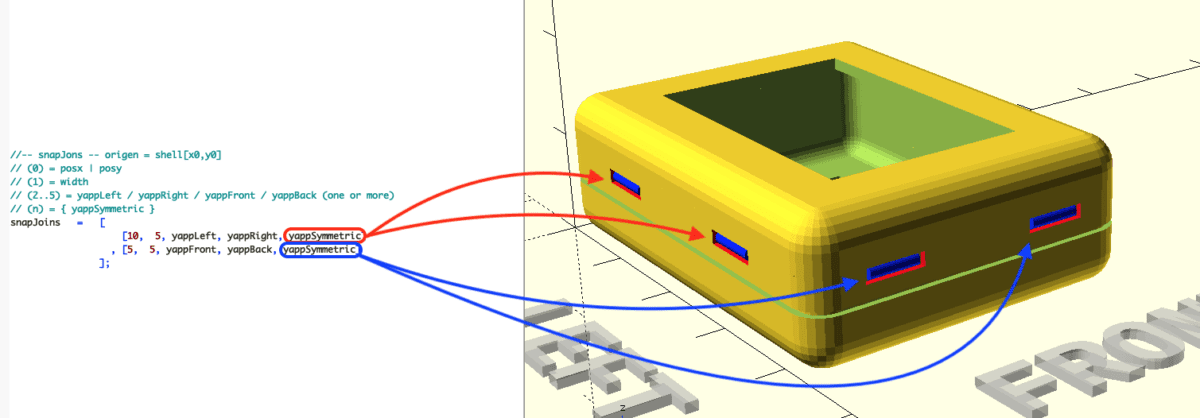

snapJoins   =
[
    [10, 5, yappLeft, yappRight, yappSymmetric]
   ,[ 5, 5, yappFront, yappBack, yappSymmetric]
];
