Cutouts in the Lid Plane

This code:

cutoutsLid =
[
    [10, 10, 10, 15, 0, yappRectangle]                                //-- A
   ,[25, 15, 10, 15, 0, yappRectangle, yappDefault, -30]              //-- B
   ,[45, 10, 10, 15, 2, yappRoundedRect]                              //-- C
   ,[66, 15, 10, 15, 2, yappRoundedRect, yappDefault, 30]             //-- D
   ,[10, 40, 8, 0, 6, yappCircleWithFlats]                            //-- E
   ,[25, 40, 4, 3, 6, yappCircleWithKey]                              //-- F
   ,[45, 40, 8, 0, 6, yappCircleWithFlats, yappDefault, yappDefault, yappCenter]  //-- G
   ,[60, 40, 4, 3, 6, yappCircleWithKey, yappDefault, yappDefault, yappCenter]    //-- H
];

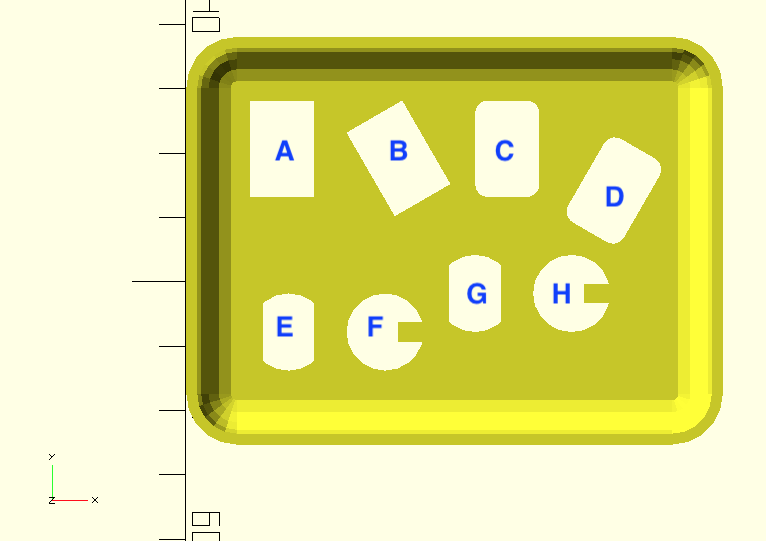

Will result in this lid:
