Cutouts in the Front Plane

PreviousCutouts in the Lid PlaneNextCutouts in the Back Plane

Last updated 1 year ago

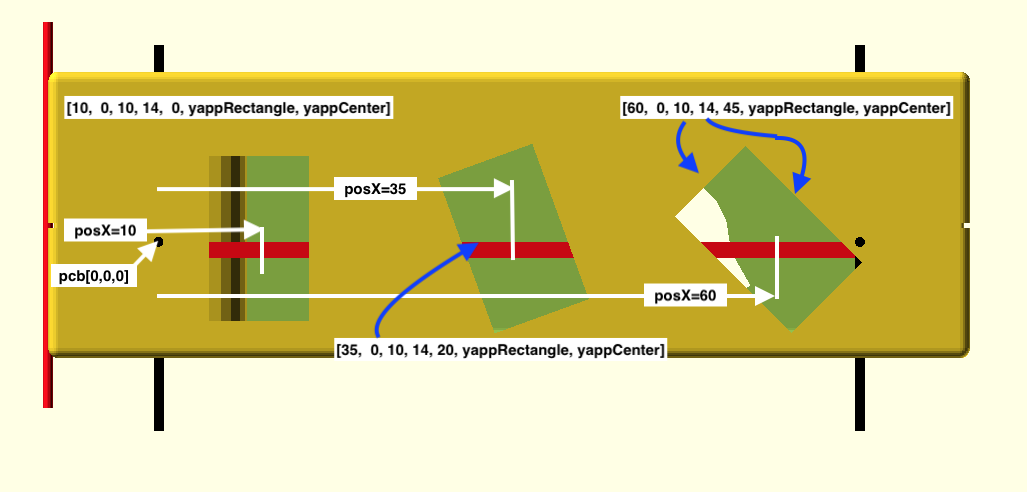

This code:

cutoutsFront =
[
    [10, 0, 10, 14, 0, yappRectangle, yappDefault,   0, yappCenter]
   ,[35, 0, 10, 14, 0, yappRectangle, yappDefault, -20, yappCenter]
   ,[60, 0, 10, 14, 0, yappRectangle, yappDefault, -45, yappCenter, yappCoordPCB]
];

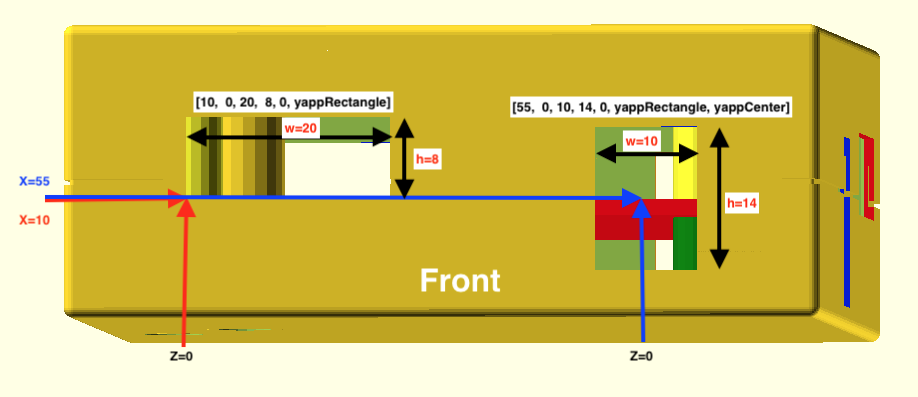

Will produce this:
