  1. Box Mounts

boxMounts (advanced)

The boxMounts API is:

Parameters:
 Required:
  p(0) = pos : position along the wall : [pos,offset] : vector for position
               and offset X.
               Position is to center of mounting screw in leftmost position
               in slot
  p(1) = screwDiameter
  p(2) = width of opening in addition to screw diameter
               (0=Circular hole screwWidth = hole twice as wide as it is tall)
  p(3) = height
 Optional:
  p(4) = filletRadius : Default = 0/Auto(0 = auto size)
  n(a) = { yappLeft | yappRight | yappFront | yappBack } : one or more
  n(b) = { yappNoFillet }
  n(c) = { <yappBase>, yappLid }
  n(d) = { yappCenter } : shifts Position to be in the center of the opening
                          instead of the left of the opening
  n(e) = { <yappGlobalOrigin>, yappLeftOrigin } : Only affects Back and Right
                                                  Faces

The optional parameters n(c) and n(d) are important.

n(c) - mount on base or lid

Standard the boxMount will be placed at the base of the box.

boxMounts   =
[
   [0,           3.5, 15, 3, yappLeft]
  ,[shellLength, 3.5, 15, 3, yappLeft]
];

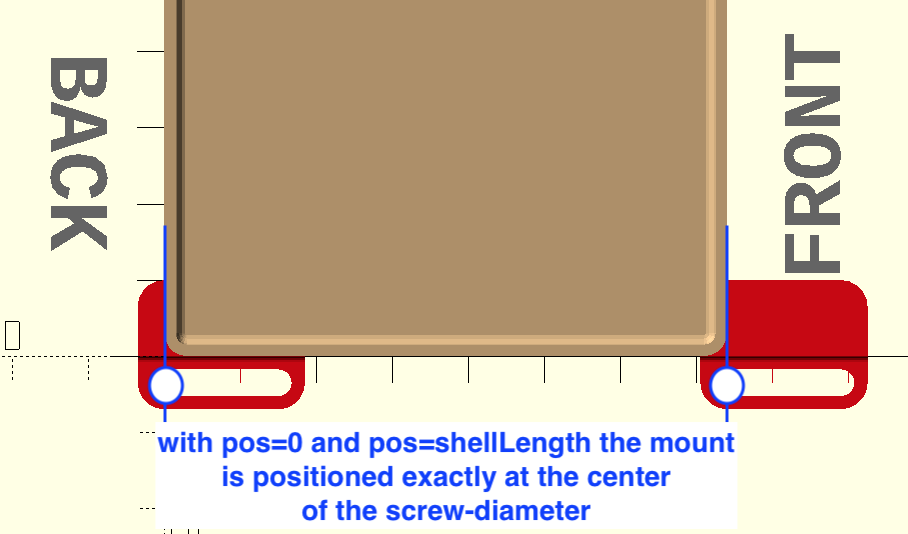

The mounts are placed on the base (default):

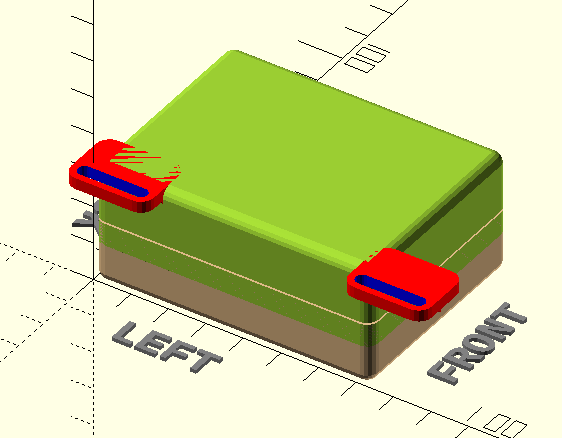

With n(c) set to yappLid the mounts are placed at the lid:

boxMounts   =
[
   [0,           3.5, 15, 3, yappLeft, yappLid]
  ,[shellLength, 3.5, 15, 3, yappLeft, yappLid]
];

n(d) - yappCenter

When yappCenter is added the center of the mount will be the reference for the pos parameter [p(0) ].

boxMounts   =
[
   [0,           3.5, 15, 3, yappLeft, yappCenter]
  ,[shellLength, 3.5, 15, 3, yappLeft, yappCenter]
];

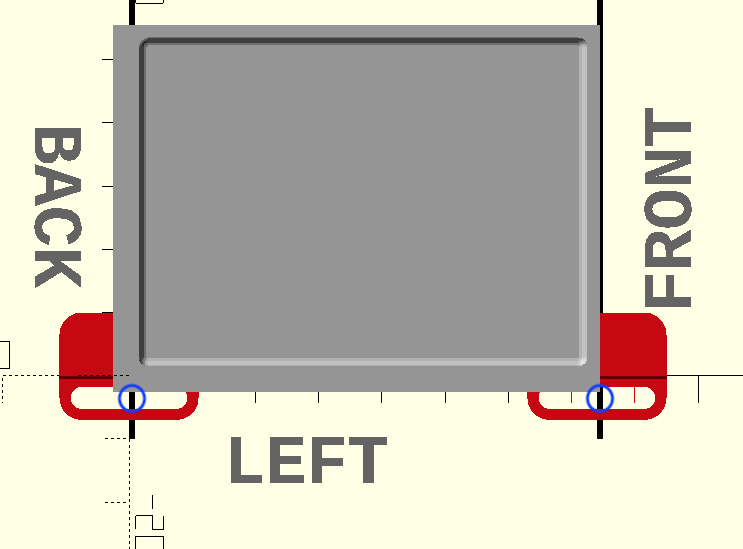

The mounts pos is centered around the, well, 'center' of the mounts:

p(2) - negative width

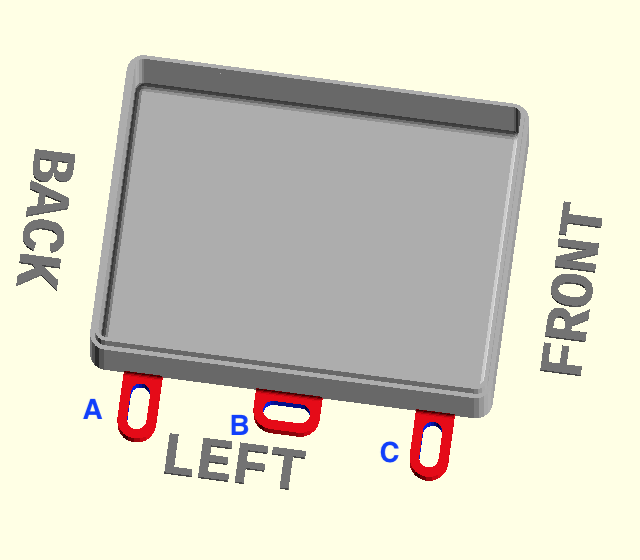

With a negative value of the width [ p(2)] the mounts are 90 degrees rotated.

boxMounts   =
[
   [10,             3.5, -5, 3, yappLeft, yappCenter] //-- [A] - p(2) negative
  ,[shellLength/2 , 3.5,  5, 3, yappLeft, yappCenter] //-- [B] - p(2) positive
  ,[shellLength-10, 3.5, -5, 3, yappLeft, yappCenter] //-- [C] - p(2) negative
];
